An array is an orderly arrangement of samples where matching of known and unknown DNA samples is done based on base pairing rules. An array experiment makes use of common assay systems such as microplates or standard blotting membranes. The sample spot sizes are typically less than 200 microns in diameter usually contain thousands of spots.

Thousands of spotted samples known as probes (with known identity) are immobilized on a solid support (a microscope glass slides or silicon chips or nylon membrane). The spots can be DNA, cDNA, or oligonucleotides. These are used to determine complementary binding of the unknown sequences thus allowing parallel analysis for gene expression and gene discovery. An experiment with a single DNA chip can provide information on thousands of genes simultaneously. An orderly arrangement of the probes on the support is important as the location of each spot on the array is used for the identification of a gene.

Depending upon the kind of immobilized sample used construct arrays and the information fetched, the Microarray experiments can be categorized in three ways:

1. Microarray Expression Analysis:
In this experimental setup, the cDNA derived from the mRNA of known genes is immobilized. The sample has genes from both The normal as well as the diseased tissues. Spots with more intensity are obtained for diseased tissue gene if the gene is over expressed in the diseased condition. This expression pattern is then compared to the expression pattern of a gene responsible for a disease.

2. Microarray for Mutation Analysis:
For this analysis, the researchers use gDNA. The genes might differ from each other by as less as a single nucleotide base.

A single base difference between two sequences is known as Single Nucleotide Polymorphism (SNP) and detecting them is known as SNP detection.

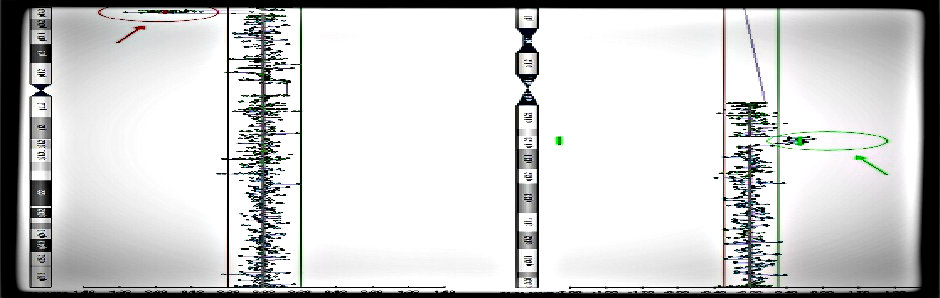

3. Comparative Genomic Hybridization:
It is used for the identification in the increase or decrease of the important chromosomal fragments harboring genes involved in a disease.

4. Protein array:
a high-throughput method used to track the interactions and activities of proteins, and to determine their function, and determining function on a large scale.



Applications of Microarrays
Gene Discovery: DNA Microarray technology helps in the identification of new genes, know about their functioning and expression levels under different conditions.


Disease Diagnosis: DNA Microarray technology helps researchers learn more about different diseases such as heart diseases, mental illness, infectious disease and especially the study of cancer. Until recently, different types of cancer have been classified on the basis of the organs in which the tumors develop. Now, with the evolution of microarray technology, it will be possible for the researchers to further classify the types of cancer on the basis of the patterns of gene activity in the tumor cells. This will tremendously help the pharmaceutical community to develop more effective drugs as the treatment strategies will be targeted directly to the specific type of cancer.


Drug Discovery: Microarray technology has extensive application in Pharmacogenomics. Pharmacogenomics is the study of correlations between therapeutic responses to drugs and the genetic profiles of the patients. Comparative analysis of the genes from a diseased and a normal cell will help the identification of the biochemical constitution of the proteins synthesized by the diseased genes. The researchers can use this information to synthesize drugs which combat with these proteins and reduce their effect.


Toxicological Research: Microarray technology provides a robust platform for the research of the impact of toxins on the cells and their passing on to the progeny. Toxicogenomics establishes correlation between responses to toxicants and the changes in the genetic profiles of the cells exposed to such toxicants.
